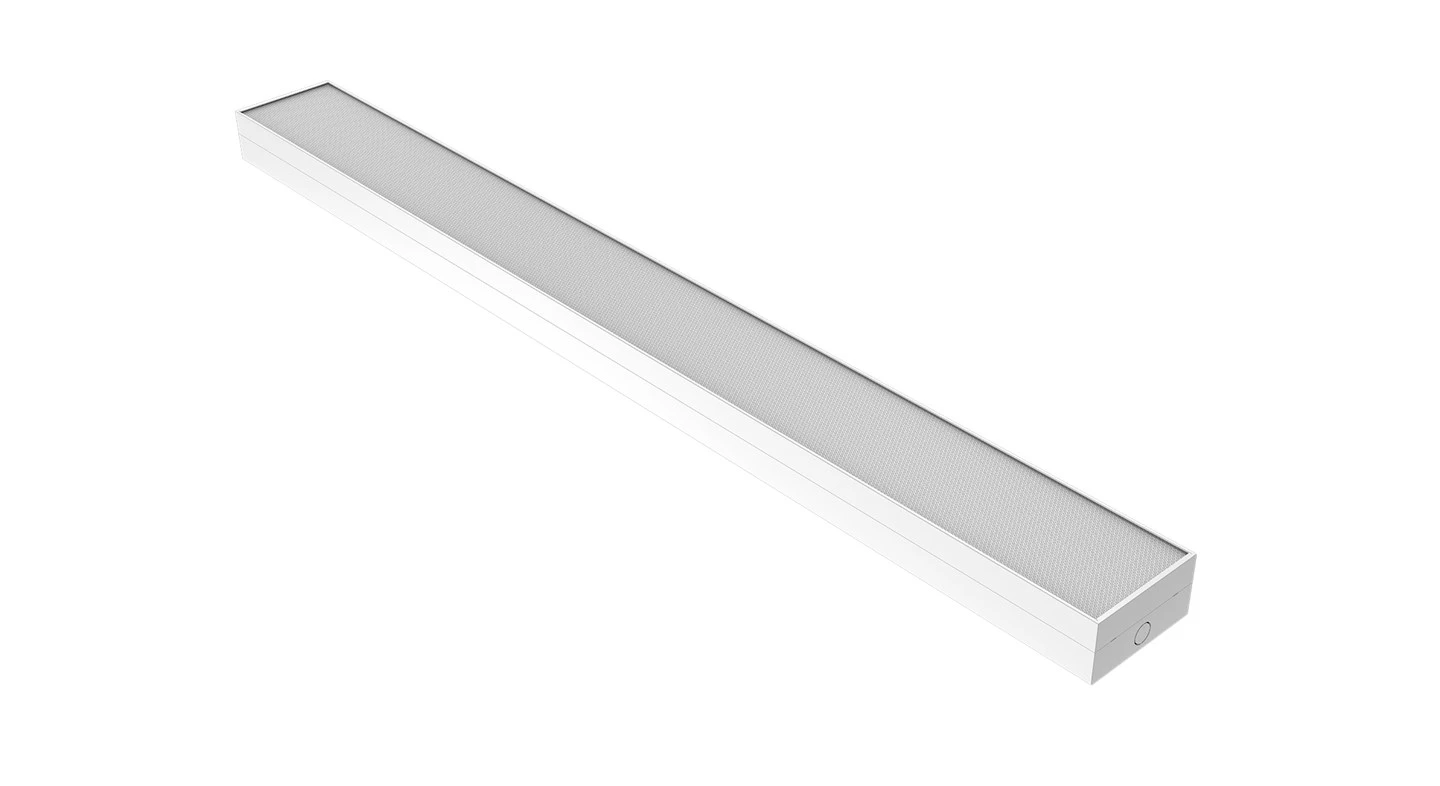

Kingston UGR Batten Light

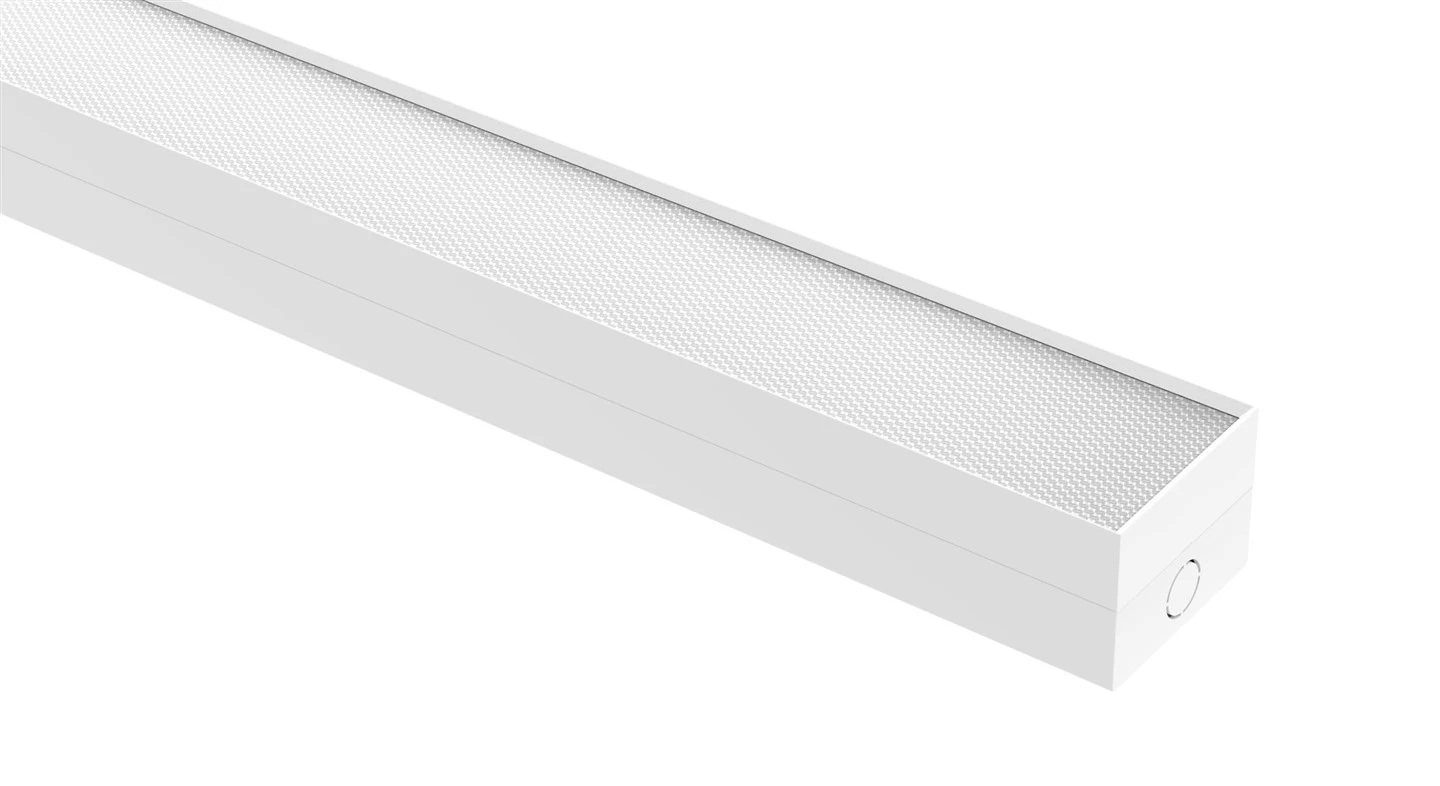

Kingston batten -2

Kingston batten -3

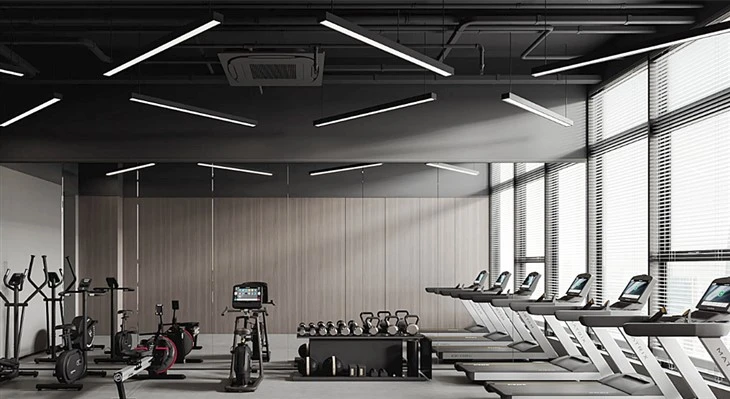

Kingston batten -4

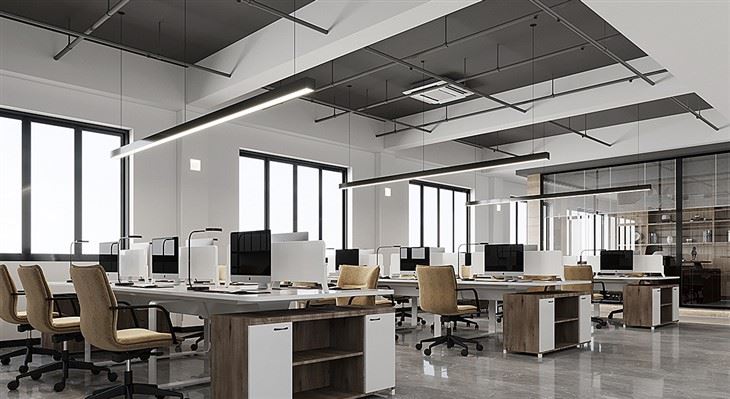

Kingston batten -5

Famaritana:

Kingston Batten dia mampiasa ny raharaha aluminium ambony sy midina ho toy ny fantson-drano lehibe indrindra, izay tsy vitan'ny hoe miantoka ny fiparitahan'ny hafanana tsara, fa manome antoka maharitra ihany koa.
Kingston Batten dia mampiasa PET diffuser avy amin'ny Bright-view ho fitaovana manohitra-glare, izay tsy miantoka ny UGR fotsiny.<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

endri-javatra:

>UGR<19 with brightview film

>CCT mandeha amin'ny mpamily LED

>55mm|80mm|120mm ny sakany misy

>Ra80 na Ra90, SDCM<3

>Ny faran'ny na ny lavaka besa aorian'ny fidirana tariby

>Asa isan-karazany ho safidy

>2ft / 4ft / 5ft / 6ft refy azo ampiasaina

>Fametrahana / fampiatoana / fametrahana fampiatoana

>5 taona garantie

Send Inquiry

Download

Description

Technical Parameters

FAMPIDIRANA:

Kinston Batten dia manolotra sakany 55mm, 80mm ary 120mm azo isafidianana, izay mahatonga ny mpanjifa ho liana kokoa amin'ny fampiharana ara-barotra sy birao samihafa.

PROPERTY:

Kingston UGR Batten 55mm dia natao hanomezana fampisehoana jiro tsara indrindra ary miantoka ny fampiononana hita maso. Mahomby sy kanto, ity jiro LED 2ft 4ft 5ft ity dia tonga lafatra amin'ny fampiharana isan-karazany manomboka amin'ny biraon'ny orinasa mankany amin'ny tontolo fivarotana sy ny sehatra indostrialy. Ny trano fonenan'ny aluminio dia fanapotehana hafanana tena tsara ary ny SMD2835 avo lenta dia manome vokatra lumen kokoa.

Kaody baiko	sakany	Hery naoty	LM/W	Lumen	SDCM/Ra	Watt/CCT jiro	Haben'ny vokatra	GW/CTN	QTY/CTN
BT100-02W-DT1-20F01	55mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW55xH64	6,0 kg	8 pcs
BT100-04W-DT1-40F01	55mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW55xH64	11,5 kg	8 pcs
BT100-05W-DT1-50F01	55mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW55xH64	14,5 kg	8 pcs
BT100-06W-DT1-60F01	55mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW55xH64	17 kg	8 pcs
BT110-02W-DT1-20F01	80mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW80xH64	7,0 kg	6pcs
BT110-04W-DT1-40F01	80mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW80xH64	12.0kg	6pcs
BT110-05W-DT1-50F01	80mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW80xH64	14.0kg	6pcs
BT110-06W-DT1-60F01	80mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW80xH64	18,0 kg	6pcs
BT120-02W-DT1-20F01	120mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW120xH64	7,0 kg	4pcs
BT120-04W-DT1-40F01	120mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW120xH64	10,5 kg	4pcs
BT120-05W-DT1-50F01	120mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW120xH64	13,0 kg	4pcs
BT120-06W-DT1-60F01	120mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW120xH64	15,5 kg	4pcs

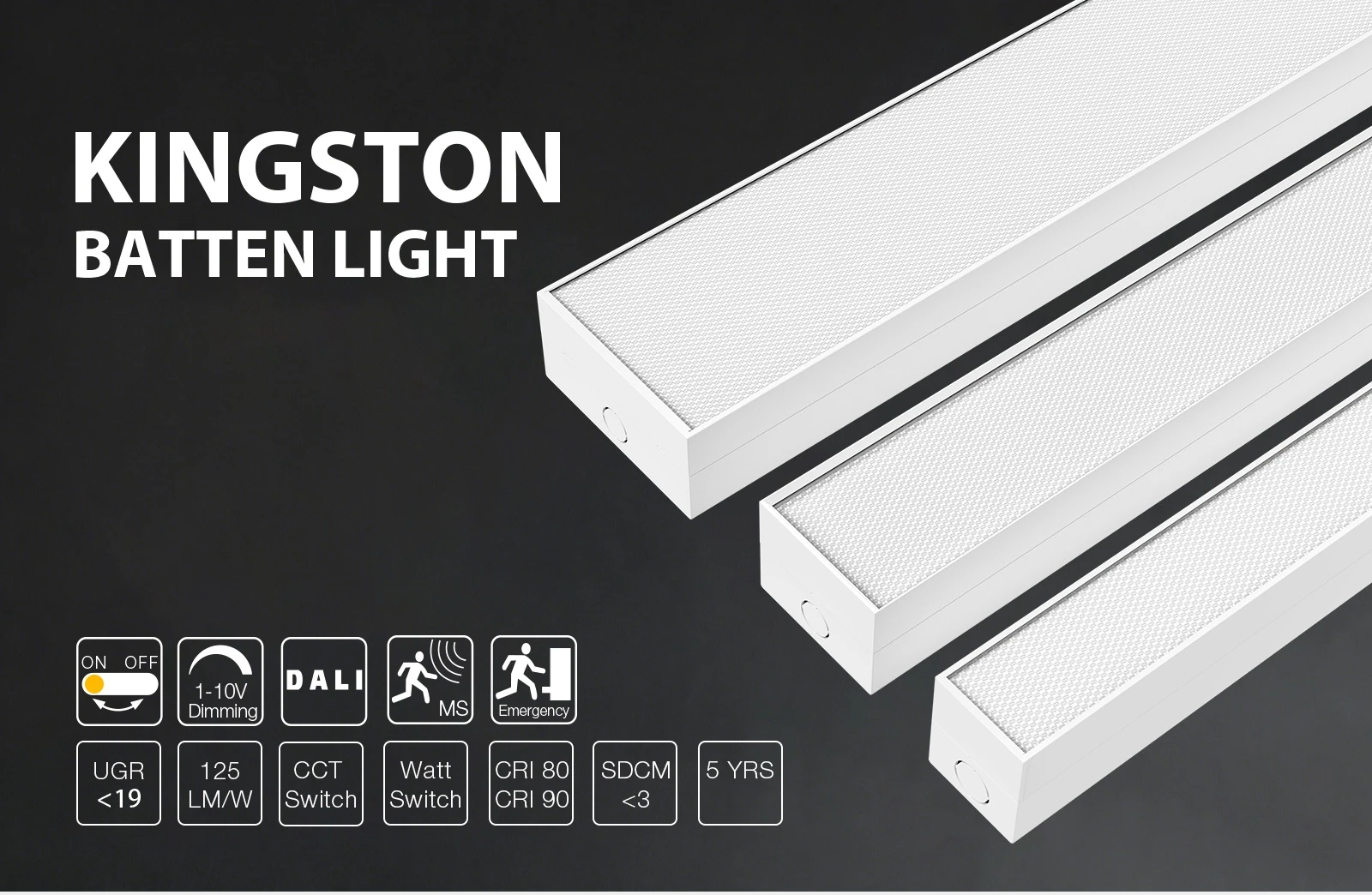

Kingston 01

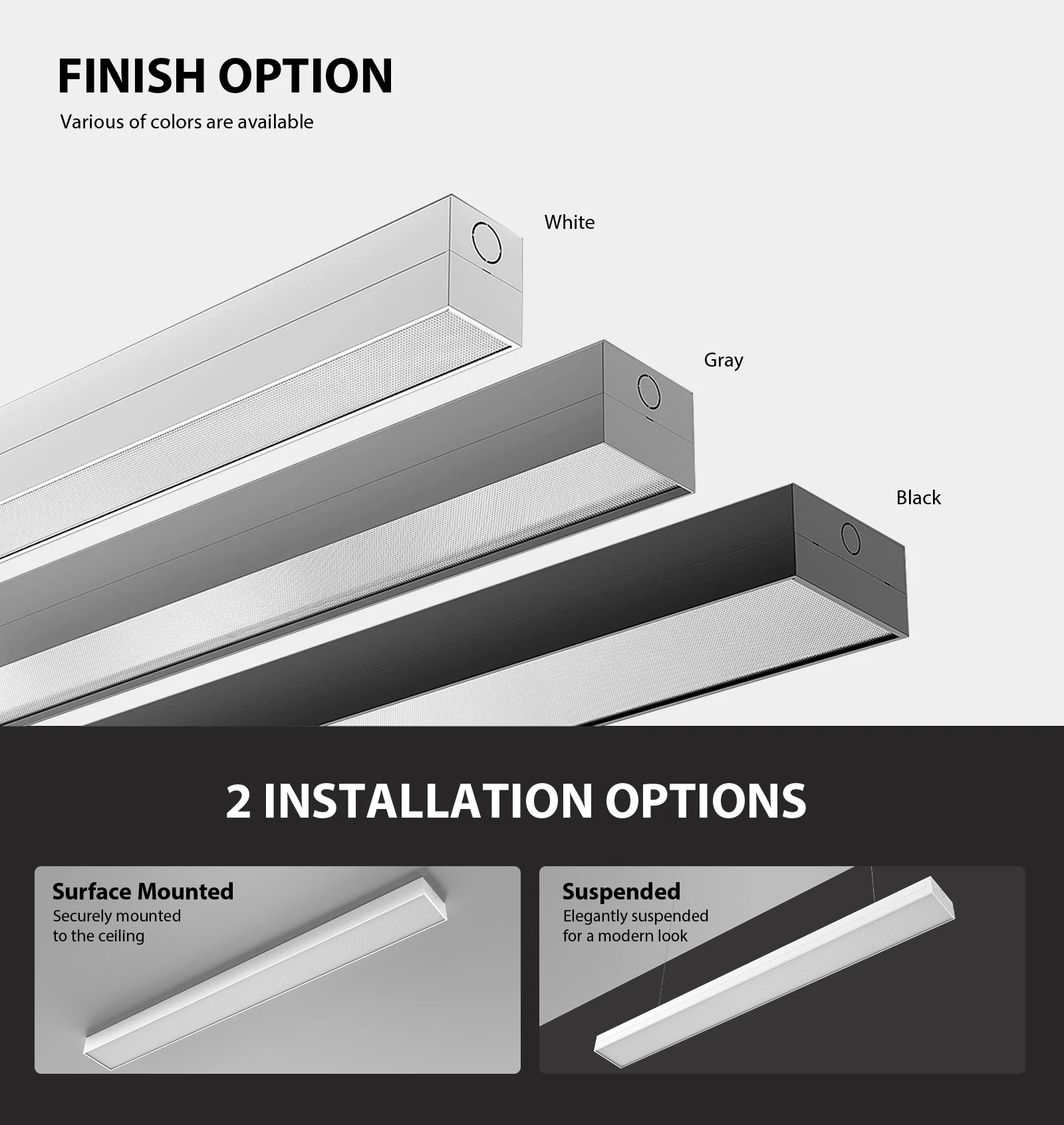

Kingston 02

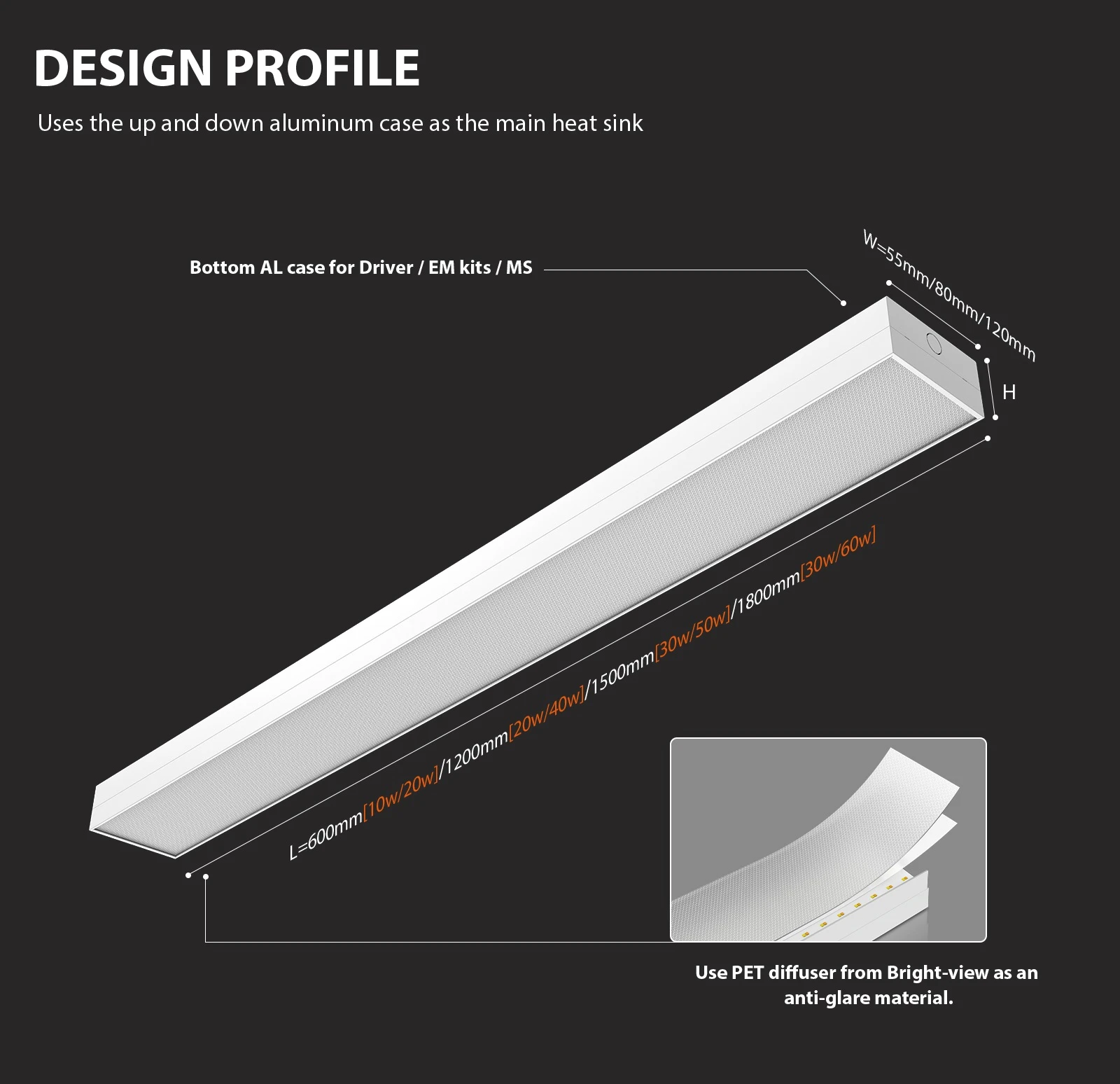

Kingston 03

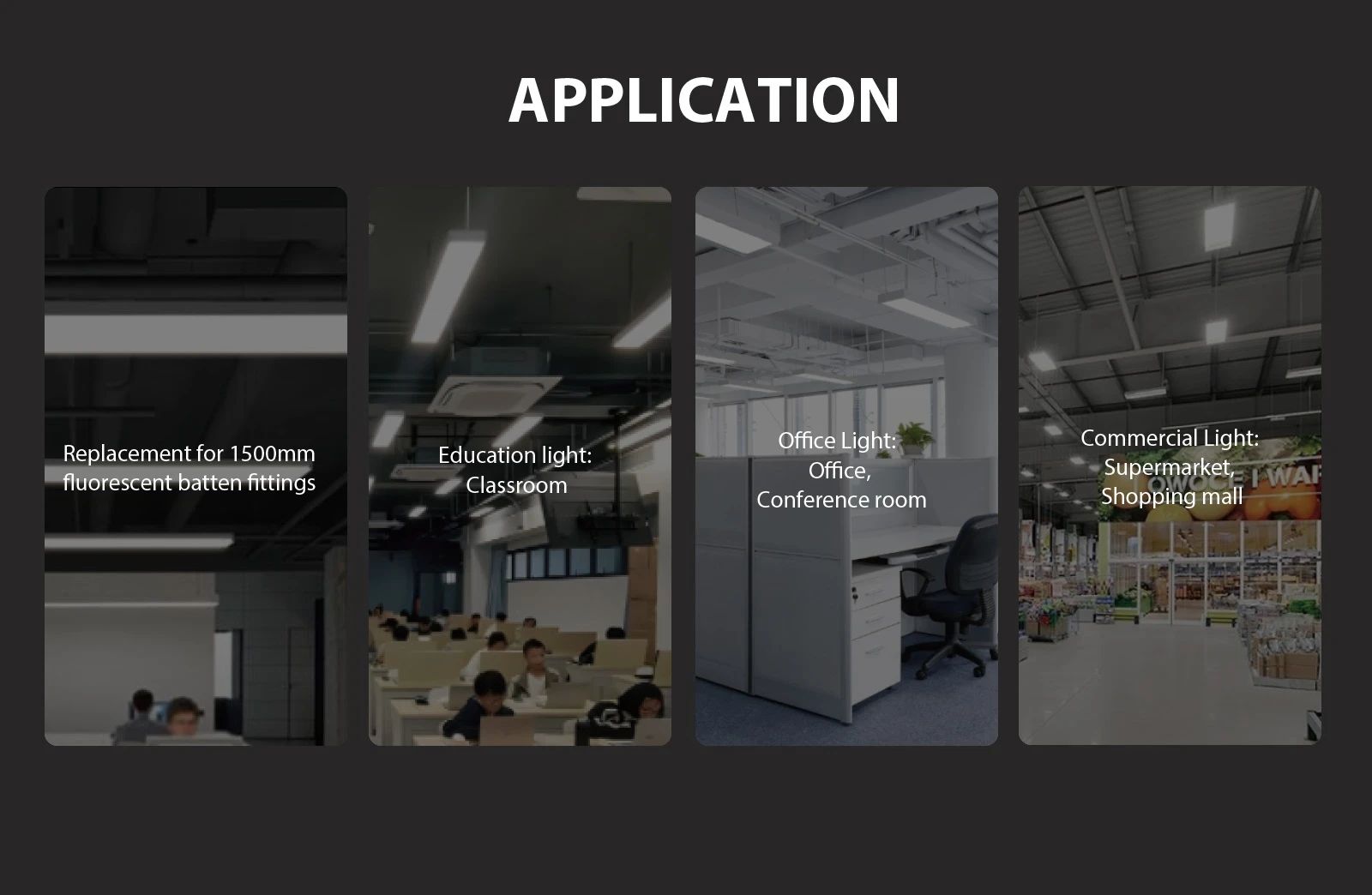

Kingston 04

Hot Tags: kingston UGR batten jiro, Shina kingston UGR batten jiro mpanamboatra, mpamatsy, orinasa
